| Connector LC / SC / FC / ST | Singlemode | ||||||
| Polishing | APC | ||||||
| Return loss | ≥ 60 dB | ||||||
| Insertion loss | ≤ 0,25 dB (typical) | ||||||
| Ferrule material | Ceramic (zirconia) | ||||||
| Ferrule diameter | 1.25 mm / 2.5 mm | ||||||
| Insertion / extraction cycles | Min. 1000 | ||||||
| Cable Mechanical Properties | |||||||
| Cabled optical fiber | OS2 | ||||||
| Nominal diameter core / sheath | 9 / 125 μm | ||||||
| Color | Yellow | ||||||
| Outer diameter | 1.6 mm to 3 mm | ||||||
| Sheath material | LSZH, UL-94 V0 | ||||||
| Bending radius (static) | 45 mm | ||||||
| Temperature range | -20°C +70°C | ||||||
| Attenuation @ 850 / 1300 nm (dB/km) | ≤ 3,2 / ≤ 0,8 | ||||||
| Attenuation @ 1310 / 1383 / 1550 nm (dB/km) | |||||||

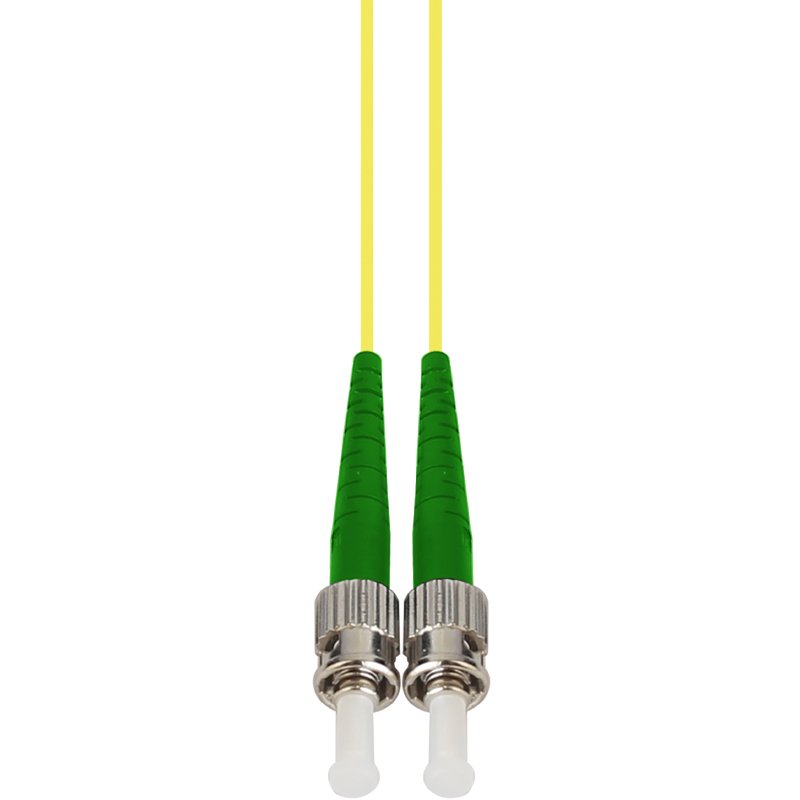

SINGLEMODE APC Patchcord is LSZH.
SINGLEMODE APC Patchcord diameter is 2X2 (4) mm.
The dB loss of SINGLEMODE APC Patchcord is maxium 0.05 dB.
