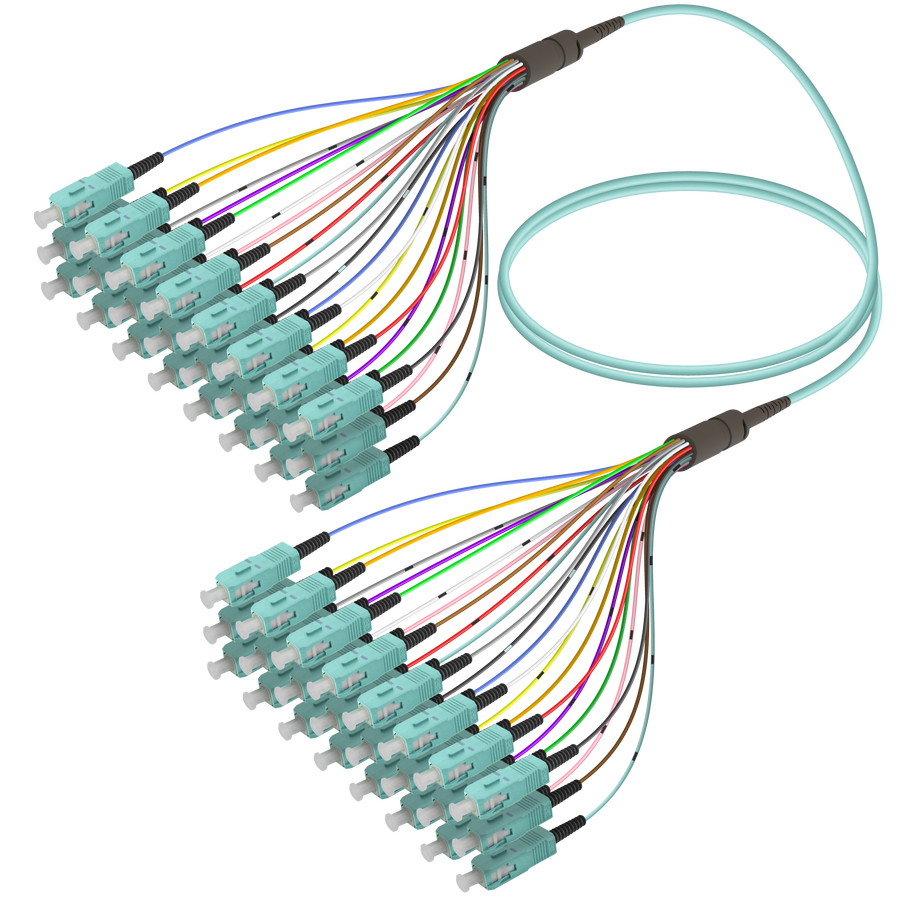

Multimode OM3 Patch Cord

Mikrolink Fiber

Home Page Fiber Optic Products Patch Cord Multimode OM3 Patch Cord

Mikrolink Fiber


Connector LC / SC / FC / ST       Singlemode
Polishing           UPC
Return loss           ≥ 20 dB
Insertion loss           ≤ 0,20 dB (typical)
Ferrule material           Ceramic (zirconia)
Ferrule diameter           1.25 mm / 2.5 mm
Insertion / extraction cycles         Min. 1000

Cable Mechanical Properties
Cabled optical fiber         OM3
Nominal diameter core / sheath       50 / 125 μm
Color           Aque
Outer diameter           1.6 mm to 3 mm
Sheath material           LSZH, UL-94 V0
Bending radius (static)         45 mm
Temperature range         -20°C +70°C
Attenuation @ 850 / 1300 nm (dB/km)       ≤ 3,2 / ≤ 0,8
Attenuation @ 1310 / 1383 / 1550 nm (dB/km)

MULTIMODE OM3 Patchcord is LSZH.

MULTIMODE OM3 Patchcord diameter is 2 mm.

The maximum loss of dB of MULTIMODE OM3 Patchcord is 0.05 dB.
